mt-198nc

PCD & PCBN Tool Grinding Machine

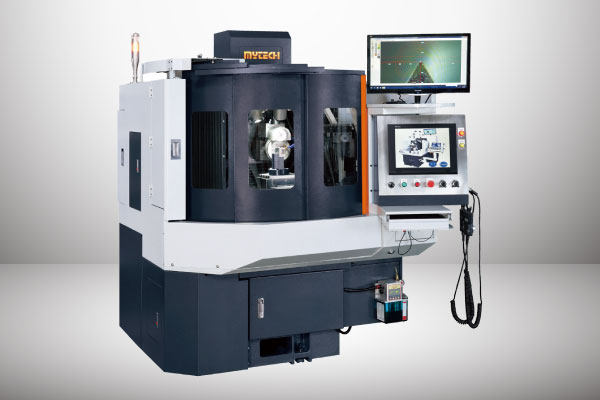

MT-198NC

Application Materials: PCD / PCBN, Tungsten Carbide, High Speed Steel (HSS)

Features

  • MT-198NC spindle can be raised and lowered, B axis braking system and MPG handwhell provides added convenience in machine running test when production of special tools.

  • MT-198NC PCD & PCBN Tool Grinding Machine, is a versatile machine, perfectly suited for manufacture and resharpen high-quality tools.

  • The high-end machine, MT-198 has creative technologies to make it convenience to machine a wide range of special tools such as, spindle can be vertical movement, B axis braking system and MPG handwheel for easy setting and running test.

SPECIFICATIONS

V: Standard   O: Option

Model Unit MT-198NC
Spindle speed rpm/mm (50Hz) 0 ~ 6000
Wheel size D x H x T 150 x 40 x 40
Grinding pressure MPa 0 ~ 0.4
Grinding wheel oscillation distance mm 0 ~ 40
Grinding wheel oscillation stroke mm 40 / min
Grinding wheel oscillation position mm 0 ~ 198
Grinding wheel inclindtion mm -2°~ 24°
Swivel table swiveling angle   270°
Table size slot 210 x 160 x 4
External dimoensions mm 1500 x 1510 x 1810
Y axis mpg   V
X1 axis mpg   V
X2 axis mpg   V
A axis mpg   V
Z axis air pressure   V
B axis brakes   V
Spindle with variable   V
Grinding wheel spinde with variable speed   V
22" lcd monitor   V
High resolution camera and measurment system (std. 105x / opt. 210x)   V
Tool stand   12, 16, 20, 25, 32
Led work lamp   2 pcs
Grinding wheel   3 pcs
Net weight kgs 2400
* All specification , dimension and design characteristics shown in this catalogue are subject to change without notice.
  • Germany Brand CCD System
  • High Quality Casting Of Column and Base
  • Servo Motor
  • Roller Type Linear Guideway
  • Human Machine Interface
  • Automatic Lubricator
  • Coolant System
  • Universal work table
  • Wheel dresser
  • High precision dividing head
